TOR-N Data Loggers

TOR-N Data loggers are NB-IoT/LTE-M capable with 2G fall-back. Capable of being powered from an external battery pack or renewables, the range offers a versatile selection of inputs and installation methods to meet any need.

Software switchable antenna, between a high gain internal antenna or an external antenna connected via an IP68 SMA connector.

Applications:

Network Monitoring
PRV Monitoring
District Metered Areas
Critical Point Monitoring
Tank Level Monitoring
Borehole Level Monitoring
Reservoir Level Monitoring

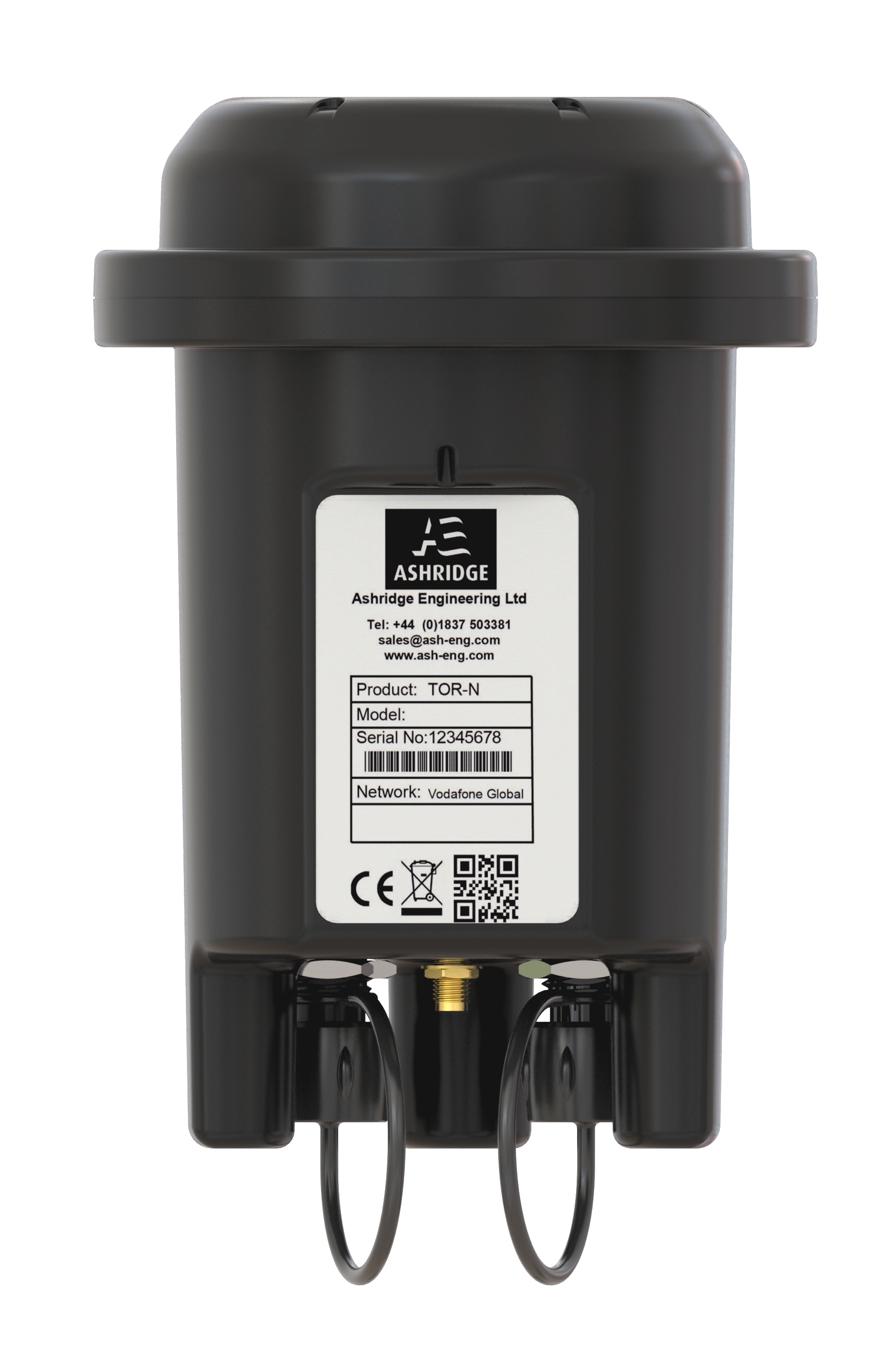

TOR-1N Data Logger

Flow Data Logger
1 Bi-directional (Forward & Reverse) Pulse Input
1 Tamper / Event Input

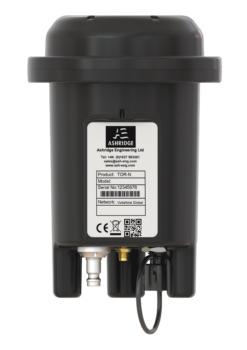

TOR-2N Data Logger

Pressure Data Logger
Single Pressure Input (5, 10 or 20 Bar Range)

TOR-3N Data Logger

Analogue Data Logger
1 Current Input (4-20mA)
1 Voltage Input (0-5V)
Controlled Transducer Power Output (5,8,10 or 12V)

TOR-1N Datasheet

TOR-2N Datasheet

TOR-3N Datasheet

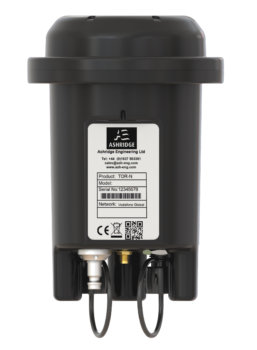

TOR-4N Data Logger

Single Pressure & Flow Data Logger

1 Bi-directional (Forward & Reverse) Pulse Input.
1 Tamper / Event Input
Single Pressure Input (5, 10 or 20 Bar Range)

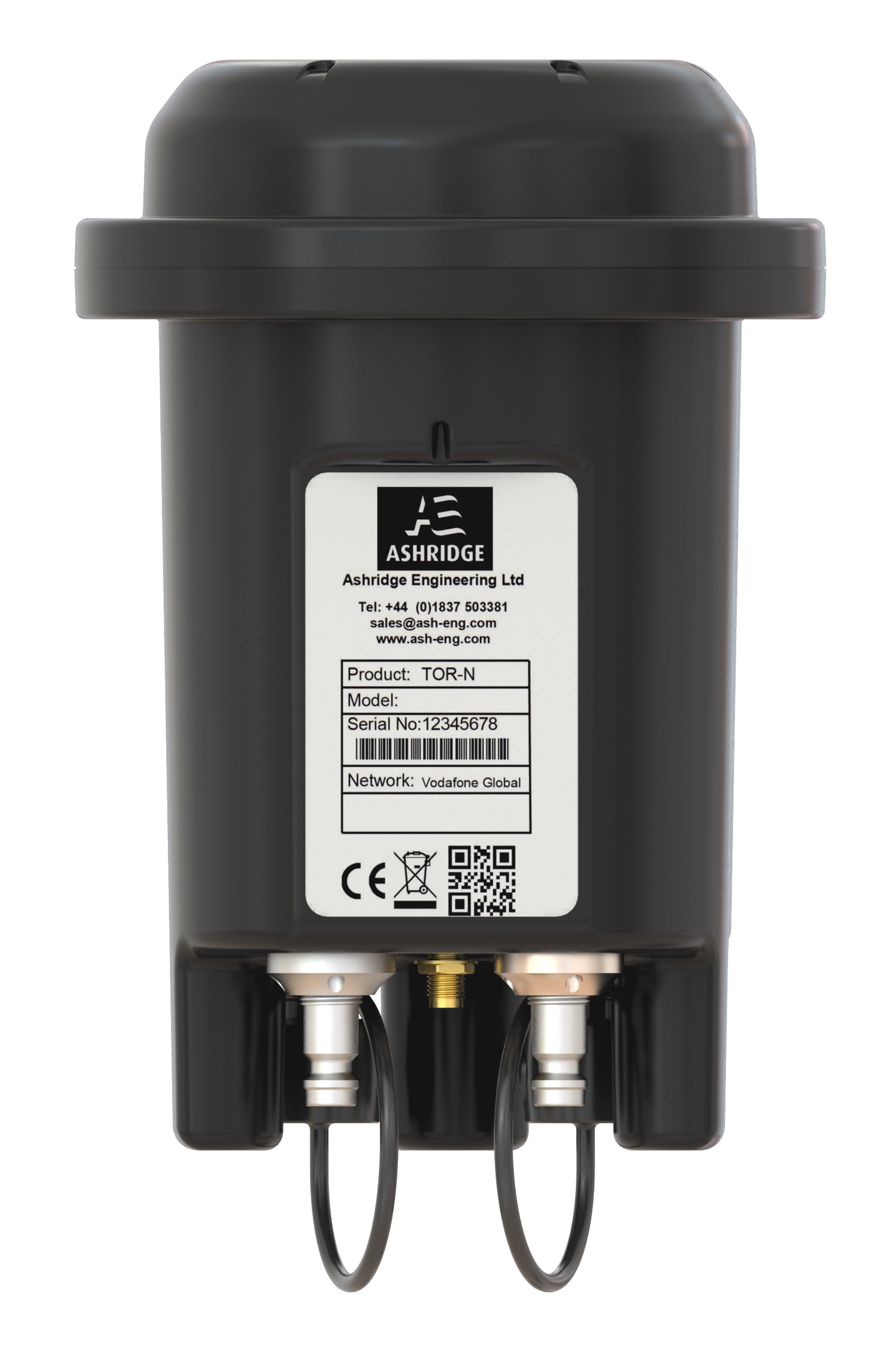

TOR-5N Data Logger

Dual Pressure & Flow Data Logger

1 Bi-directional (Forward & Reverse) Pulse Input.
1 Tamper / Event Input
Dual Pressure Inputs (5, 10 or 20 Bar Range)

TOR-6N Data Logger

MODBUS Data Logger

MODBUS RS485 Input
(3 Registers Logged)
Controlled Transducer Power Output (5,8,10 or 12V)

TOR-4N Datasheet

TOR-5N Datasheet

TOR-6N Datasheet
